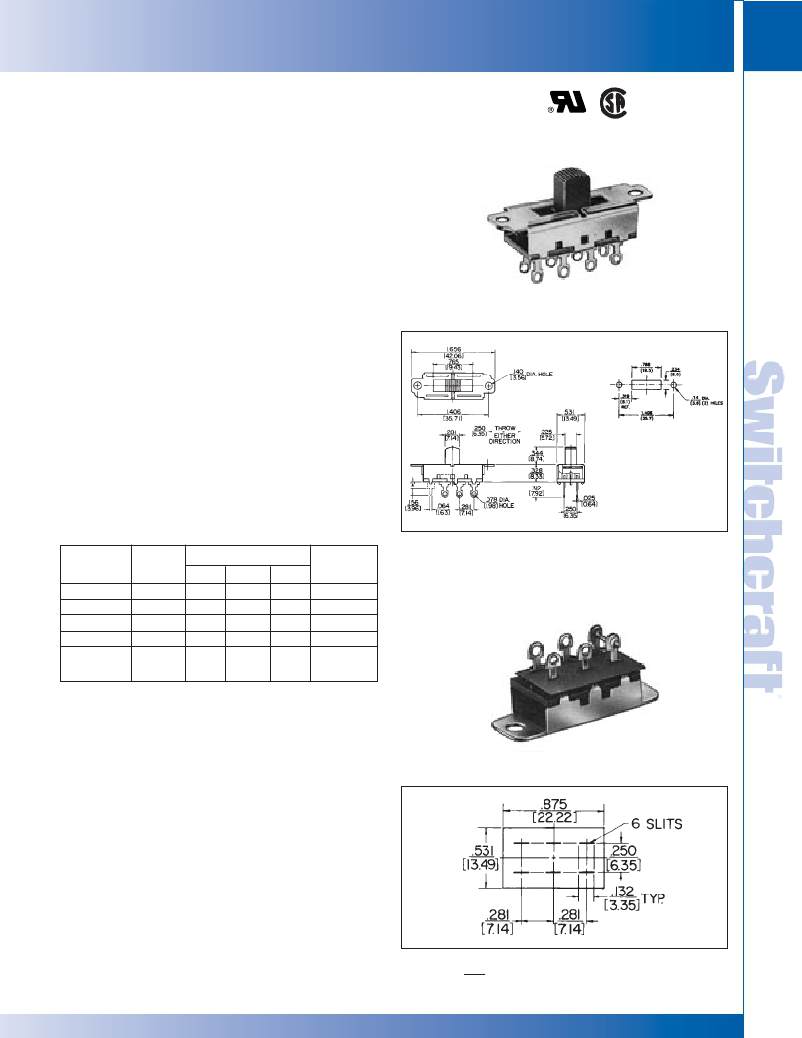

GENERAL PURPOSE SLIDE SWITCHES – SERIES 46000 - 3 POSITION
SWITCHES
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information
GENERAL PURPOSE SLIDE SWITCHES (continued)
SERIES 46300R - 3-POSITION
Three-position switches offer locking-locking, momentary-
momentary and locking-momentary action for talk-listen
applications. All switches have positive center detent and
shutter type dust cover to prevent dirt and dust from
contaminating switch contacts.
SPECIFICATIONS
Contact Ratings: 0.5A DC and 3A AC, 125V non-inductive.
Listings: UL recognized, card E40688 CSA certified
(marked) switches available on special order only.
See page 282.
Housing: Steel, plated.
Detent Spring: Music wire.
285
Shim: Black vulcanized fiber.
Knob: Black thermoplastic.
Terminals & Slider Contacts: Copper alloy, silver-plated.
Insulation: Phenolic.
Temperature Range: -4°F to +158°F (-20°C to +70°C).
Dielectric Strength: 1 kV rms @ sea level.
Insulation Resistance: 1 k M ? minimum.
SPECIAL ORDER FEATURES:
1. .344" (8.74 mm) high knobs are standard; other heights
available. See chart on page 283.
2. Series 46000R switches are CSA marked on special
order only. See page 282.
PART NUMBERS
Action Positions*
Series 46300R
Part**
Number
46311LDR
? 46311MDR
? 46311TDR
46313LDR
46313MDR
46313TDR
Circuitry
SPTT
SPTT
SPTT
DPTT
DPTT
DPTT
#1
L
M
L
L
M
L
Center
L
L
L
L
L
L
#2
L
M
M
L
M
M
Schematic
VI
VI
VI
2-VI
2-VI
2-VI
? Special order only; contact Switchcraft for price and delivery.
* L - Locking; M - Momentary.
** "C" prefix specifies .078" (1.98) PC terminals, no mounting ears.
SOLDER GUARDS
Insulating Solder Guards, P-2370 (2-position); and ? P-2633
(3-position); slip over solder lug terminals and prevent solder
splashes from entering interior (contact area) of switch. Made
of fishpaper .01" (.25 mm) thick, Solder Guard slips over
terminals quickly and easily. Precision punched slots lock
onto terminals, and rectangular shape conforms with
dimension of switch terminal board. Minimizes costly
production line rework.
Solder Guards can be used on:
? General Purpose, Series 46000R
? Tandem, Series 47000R.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
